NOG 5-/60Hz elektr gaz kuchlanish transformatori

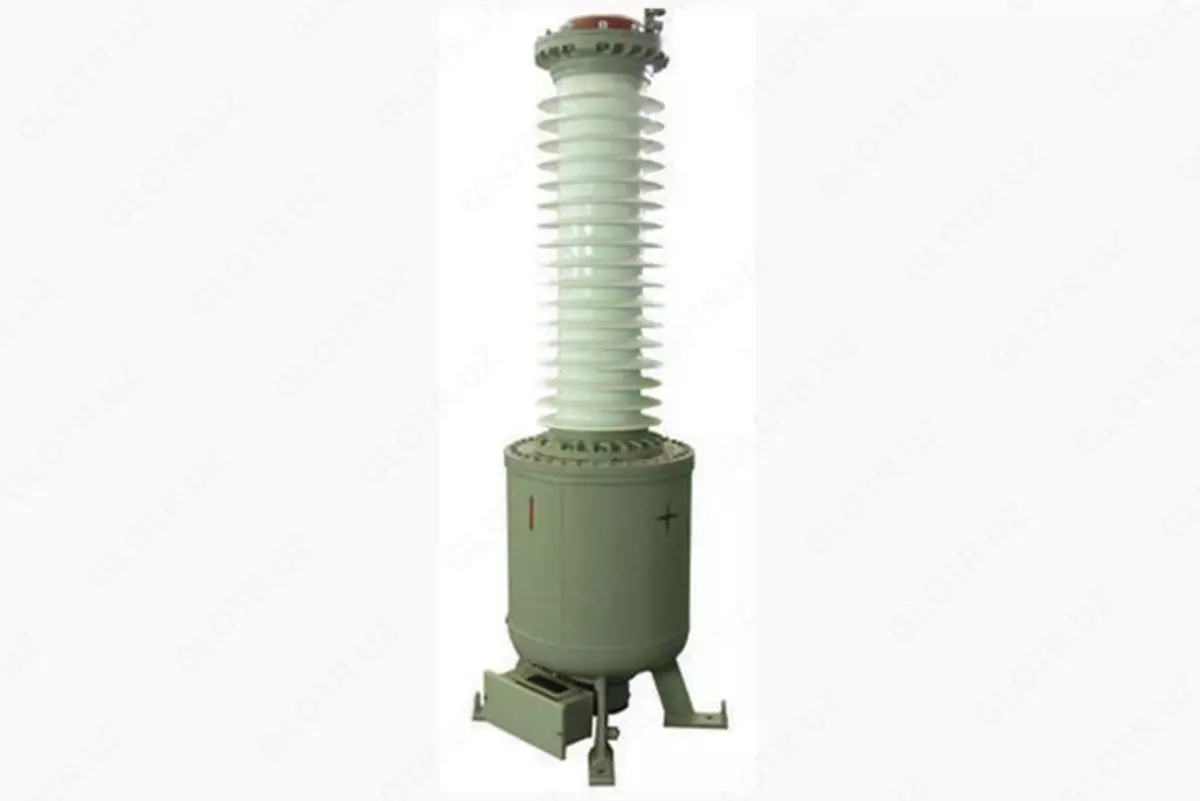

SF6 kuchlanish transformatorlari NOG 50 yoki 60 Gts chastotali o'zgaruvchan tok zanjirlarida o'lchash, himoya qilish, avtomatlashtirish, signalizatsiya va nazorat qilish qurilmalariga o'lchash ma'lumotlarining signalini uzatish maqsadida foydalanish uchun mo'ljallangan.

Dizayn

Transformatorlarning dizayni ichki izolyatsiyaning buzilishi va yoyning yonishi bilan bog'liq baxtsiz hodisa sodir bo'lganda transformator ichidagi ortiqcha bosimning 7 kgf / sm2 dan oshishiga yo'l qo'ymaydigan xavfsizlik moslamasini (membranani) ta'minlashi kerak.

Xavfsizlik moslamasi orqali gaz emissiyasi yuqoriga, xizmat ko'rsatuvchi xodimlarning ish joyidan tashqariga yo'naltirilishi kerak.

Transformatorlarning dizayni ikkilamchi sariqlarning soni va ikkilamchi sariqlardagi kuchlanish bilan farqlanadi.

Texnik xususiyatlari

Mahsulot turi Nominal kuchlanish, V

asosiy o'rta

asosiy

ikkilamchi o'rash

qo'shimcha

o'rash

NOG–123 II I U1

(NOG-110 II I U1) 110000/√3 100/√3 100

NOG–123 II II U1

(NOG-110 II II U1) 110000/√3 100/√3 100

NOG–123 II III U1

(NOG-110 II III U1) 110000/√3 110/√3 110

NOG–123 II IV U1

(NOG-110 II IV U1) 110000/√3 110/√3 110

NOG–123 IV I U1

(NOG-110 IV I U1) 110000/√3 100/√3 100

NOG-123 IV II U1

(NOG-110 IV II U1) 110000/√3 100/√3 100

NOG-123 IV III U1

(NOG-110 IV III U1) 110000/√3 110/√3 110

NOG-123 IV IV U1

(NOG-110 IV IV U1) 110000/√3 110/√3 110

NOG-145 III III U1

(NOG-132 III III U1) 132000/√3 110/√3 110

NOG-145 III IV U1

(NOG-132 III IV U1) 132000/√3 110/√3 110

NOG-145 IV III U1

(NOG-132 IV III U1) 132000/√3 110/√3 110

NOG-145 IV IV U1

(NOG-132 IV IV U1) 132000/√3 110/√3 110

NOG-170 II I U1

(NOG-150 II I U1) 150000/√3 100/√3 100

NOG-170 II II U1

(NOG-150 II II U1) 150000/√3 100/√3 100

NOG-170 II III U1

(NOG-150 II III U1) 150000/√3 110/√3 110

NOG-170 II IV U1

(NOG-150 II IV U1) 150000/√3 110/√3 110

NOG-170 IV I U1

(NOG-150 IV I U1) 150000/√3 100/√3 100

NOG-170 IV II U1

(NOG-150 IV II U1) 150000/√3 100/√3 100

NOG-170 IV III U1

(NOG-150 IV III U1) 150000/√3 110/√3 110

NOG-170 IV IV U1

(NOG-150 IV IV U1) 150000/√3 110/√3 110

NOG-245 II I U1

(NOG-220 II I U1) 220000/√3 100/√3 100

NOG-245 II II U1

(NOG-220 II II U1) 220000/√3 100/√3 100

NOG-245 II III U1

(NOG-220 II III U1) 220000/√3 110/√3 110

NOG-245 II IV U1

(NOG-220 II IV U1) 220000/√3 110/√3 110

NOG-245 IV I U1

(NOG-220 IV I U1) 220000/√3 100/√3 100

NOG-245 IV II U1

(NOG-220 IV II U1) 220000/√3 100/√3 100

NOG-245 IV III U1

(NOG-220 IV III U1) 220000/√3 100/√3 100

NOG-245 IV IV U1

(NOG-220 IV IV U1) 220000/√3 110/√3 110
